Onkyo - TX-RZ710

THX® Certified for Theater Reference Volume, the TX-RZ710 has a premium RZ build with non-phase-shift amps.

  • Power Output: 175 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC); 185 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
  • Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
  • Dimensions (W x H x D): 435 x 177 x 378 mm
  • Weight: 10.5 kg
  • Description

    • THX® Certified for Theater Reference Volume, the TX-RZ710 has a premium RZ build with non-phase-shift amps, huge capacitors, and high-output transformer that pull every drop of emotion from object-based soundtracks, which are precisely phase-aligned with new AccuReflex calibration technology. Music blooms with vibrant energy thanks to high-current amplification, whether it’s fed from Spotify via Google Cast™ or AirPlay or from a vinyl record on your turntable. FireConnect™ streams any of these sources from the receiver to a wireless speaker in another room*, while Zone 2 HDMI® sends video to a second TV.

  • Specification

    • AMPLIFIER FEATURES

      1. Discrete RZ Grade Non-Phase-Shifting Amplifier Circuits for Accurate Audio Imaging with Ultra-Low 5 Hz Frequency Performance
      2. Customized Audio-Grade Capacitors and Massive High Power Transformer for High Current Delivery and Precise Speaker Driver Control
      3. VLSC™ D/A Conversion Enhancement Delivers Supreme Clarity
      4. Optimum Gain Volume Circuitry
      5. PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

      PROCESSING FEATURES

      1. HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
      2. Dolby® TrueHD and DTS-HD Master Audio™ Decoding
      3. AK4458 384 kHz/32-bit DAC (8 Channels x 1)
      4. 32-bit Digital Signal Processing Engines
      5. 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
      6. Theater-Dimensional Virtual Surround Function
      7. Direct Mode
      8. Double Bass Function

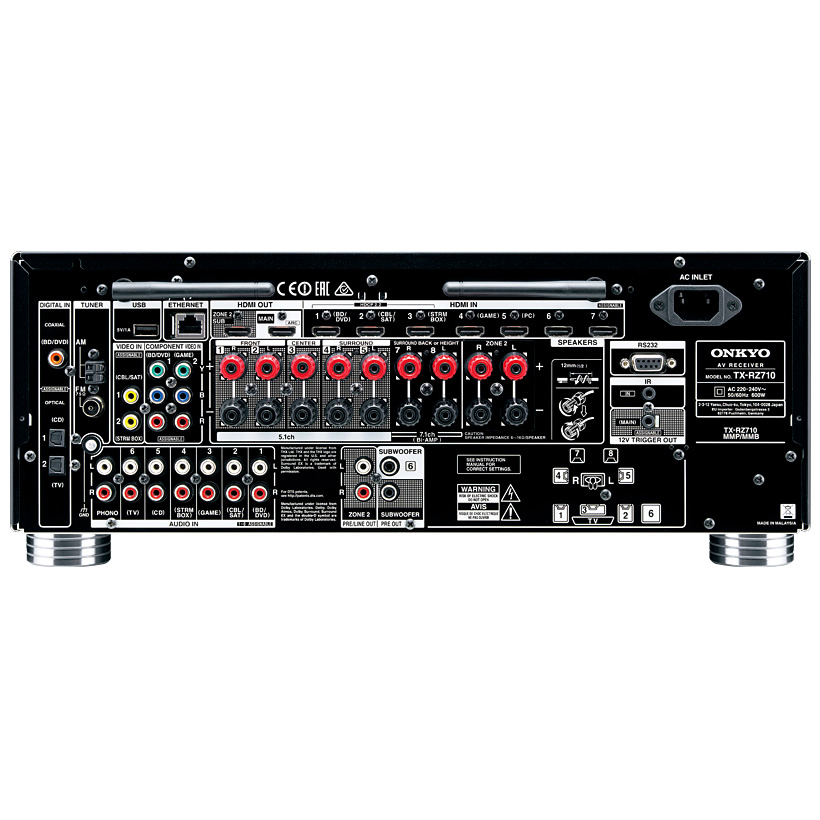

      CONNECTION FEATURES

      1. 8 HDMI Inputs (1 Front/ 7 Rear) and 2 Outputs
      2. USB 2.0 Port with Mass Storage Class USB Memory Playback
      3. 2 Component Inputs and 2 Composite Video Inputs
      4. 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
      5. 8 Analog Audio Inputs (1 Front*/7 Rear)
      6. Phono Input for Turntable Connection
      7. 2 Parallel Subwoofer Pre-Outs
      8. Location-Numbered Speaker Terminals

      OTHER FEATURES

      1. Crossover Adjustment for Each Channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)
      2. A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
      3. Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
      4. Hybrid Standby Function with HDMI Passthrough
      5. Tone Control (Bass/Treble) for Front L/R Channels
      6. 3-Mode Display Dimmer (Normal/Dim/Dimmer)
      7. 40 FM/AM Random Presets
      8. Firmware Updates via Ethernet and USB
      9. RIHD (Remote Interactive Over HDMI) for System Control

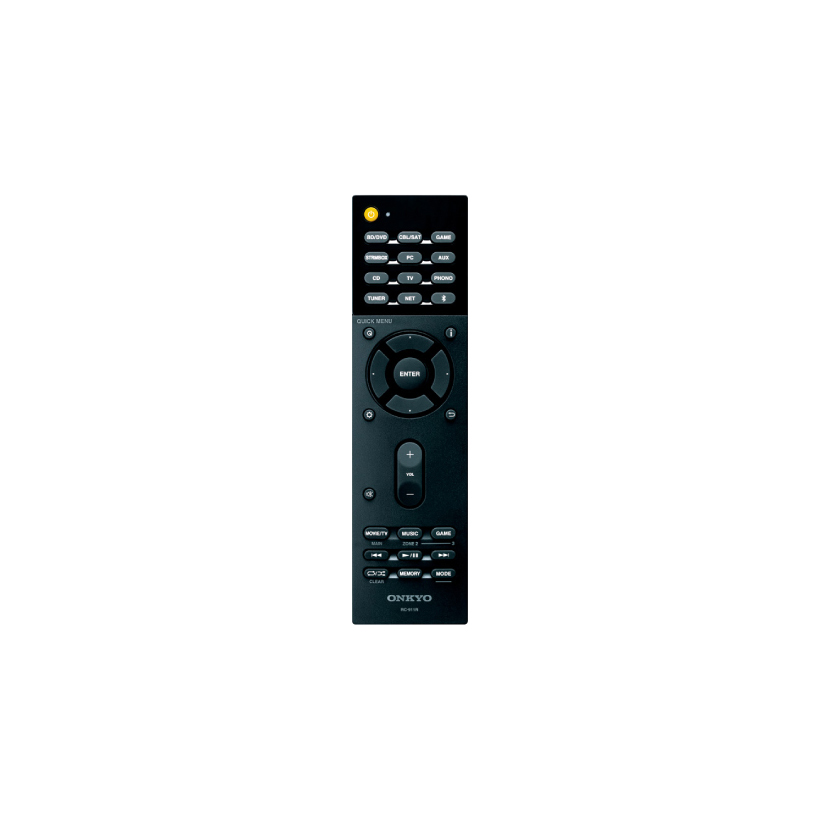

      10. Simple Remote Control
