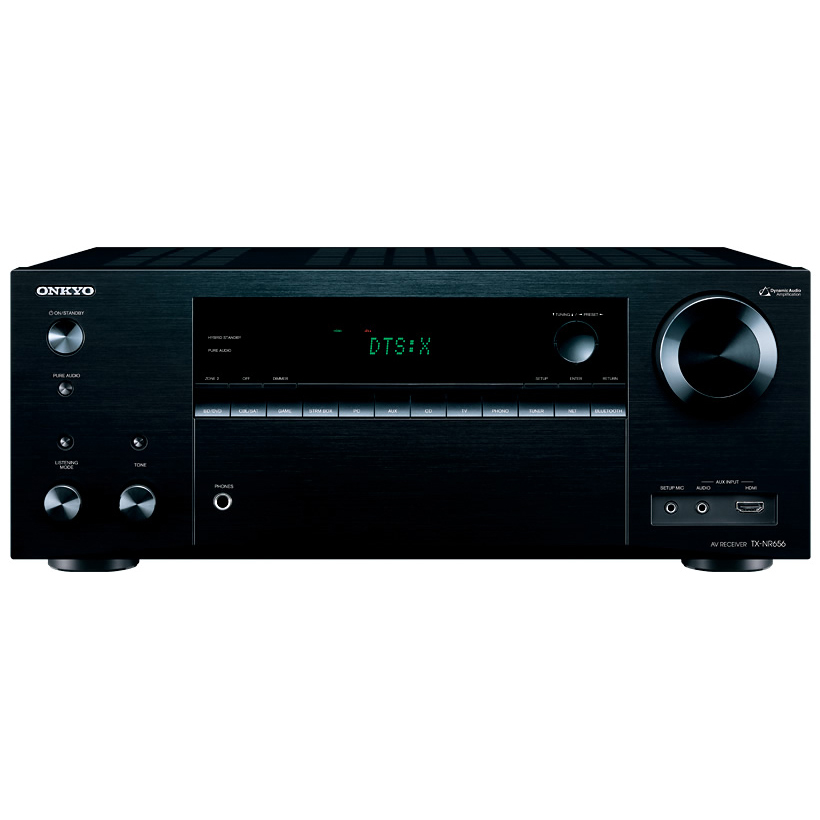

Onkyo - TX-NR656

Unbeatable features meet unbeatable sound in the TX-NR656, a state-of-the-art A/V powerhouse that revolutionizes entertainment.

  • Power Output: 160 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC); 175 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
  • Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
  • Dimensions (W x H x D): 435 x 173.5 x 378 mm
  • Weight: 10.0 kg
  • Description

    • Unbeatable features meet unbeatable sound in the TX-NR656, a state-of-the-art A/V powerhouse that revolutionizes entertainment. DTS:X™ and Dolby Atmos® decoding with advanced AccuReflex phase calibration for crystal-clear object-based audio; Google Cast™, AirPlay, and Wi-Fi® with Spotify and Tidal for music on demand; Select HDMI® terminals support 4K/60 Hz/HDR/HDCP 2.2, while the 32-bit DAC extracts all the depth and detail of Hi-Res Audio. Unlike other products, the TX-NR656 has high-current Dynamic Audio Amplification to accurately control and drive your speakers with phenomenal clarity.

  • Specification

    • AMPLIFIER FEATURES

      1. Dynamic Audio Amplification for a Thrilling Audio Experience
      2. H.C.P.S. (High Current Power Supply) Massive High Power Transformer
      3. High Current Amp Design to Effectively Drive the Speakers
      4. Non-Phase Shift Amp Circuits for Realistic Imaging
      5. VLSC™ for a Clear Audio Experience
      6. Optimum Gain Volume Circuitry
      7. PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

      PROCESSING FEATURES

      1. HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
      2. Dolby® TrueHD and DTS-HD Master Audio™ Decoding
      3. AK4458 384 kHz/32-bit DAC (8 Channels x 1)
      4. 32-bit Digital Signal Processing Engines
      5. 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
      6. Theater-Dimensional Virtual Surround Function
      7. CinemaFILTER™
      8. Direct Mode
      9. Double Bass Function

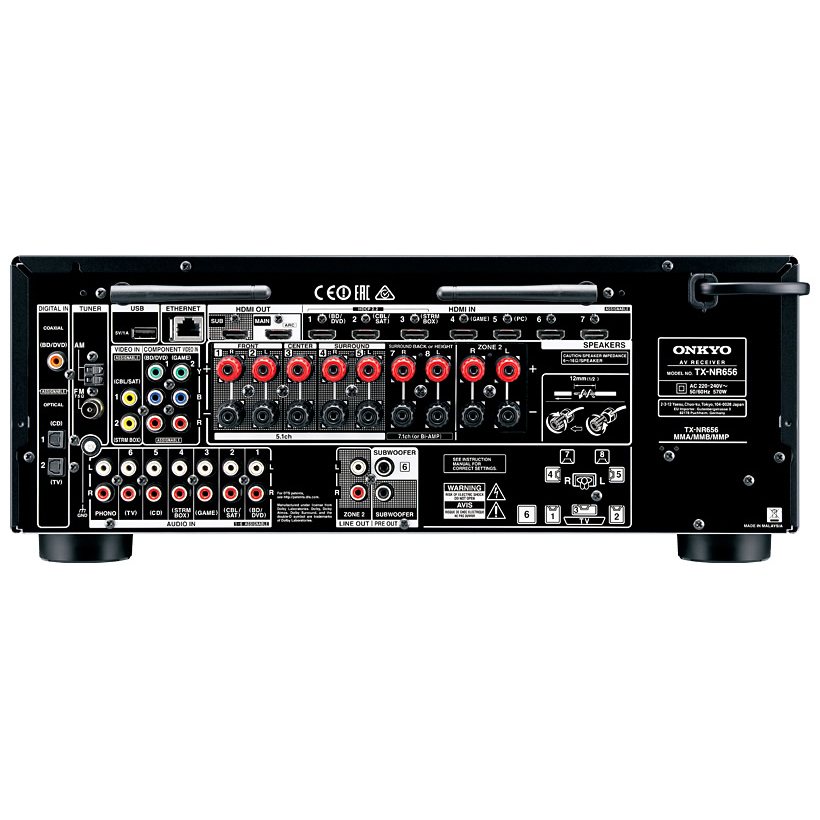

      CONNECTION FEATURES

      1. 8 HDMI Inputs (1 Front/ 7 Rear) and 2 Outputs
      2. USB 2.0 Port
      3. Mass Storage Class USB Memory Playback Capability
      4. 2 Component Inputs
      5. 2 Composite Video Inputs
      6. 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
      7. 8 Analog Audio Inputs (1 Front*/7 Rear)
      8. Phono Input for Turntable Connection
      9. 2 Parallel Subwoofer Pre-Outs
      10. Location-Numbered Speaker Terminals
      11. *3.5mm pin jack type.

      OTHER FEATURES

      1. Crossover Adjustment for Each Channel (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 180 ⁄ 200 Hz)
      2. A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
      3. Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
      4. Hybrid Standby Function with HDMI Passthrough
      5. Tone Control (Bass/Treble) for Front L/R Channels
      6. 3-Mode Display Dimmer (Normal/Dim/Dimmer)
      7. 40 FM/AM Random Presets
      8. Firmware Updates via Ethernet and USB
      9. RIHD (Remote Interactive Over HDMI) for System Control

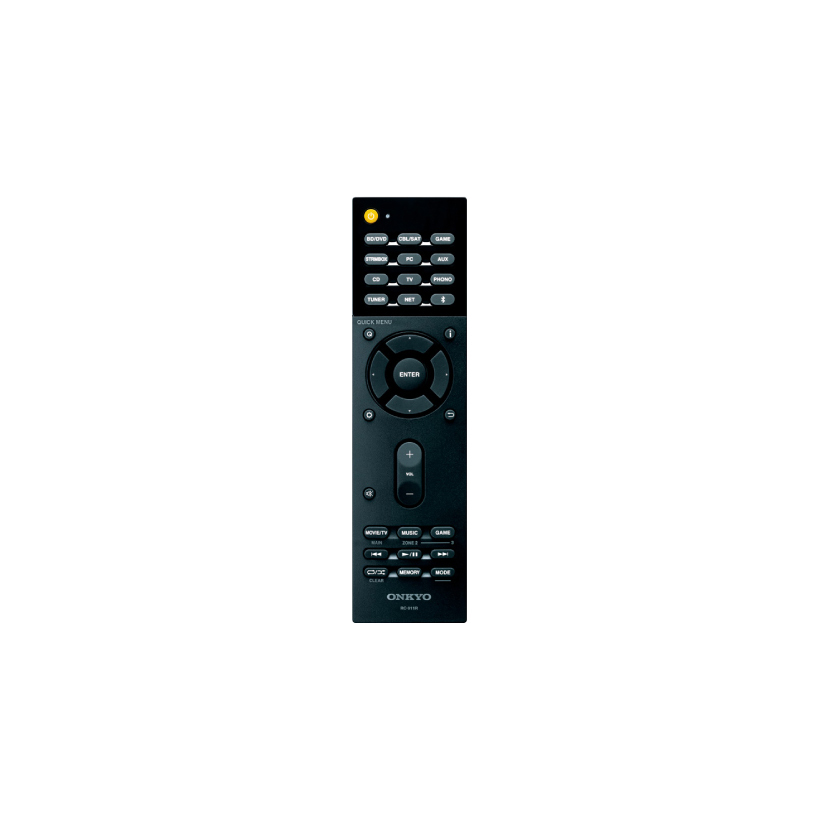

      10. Simple Remote Control

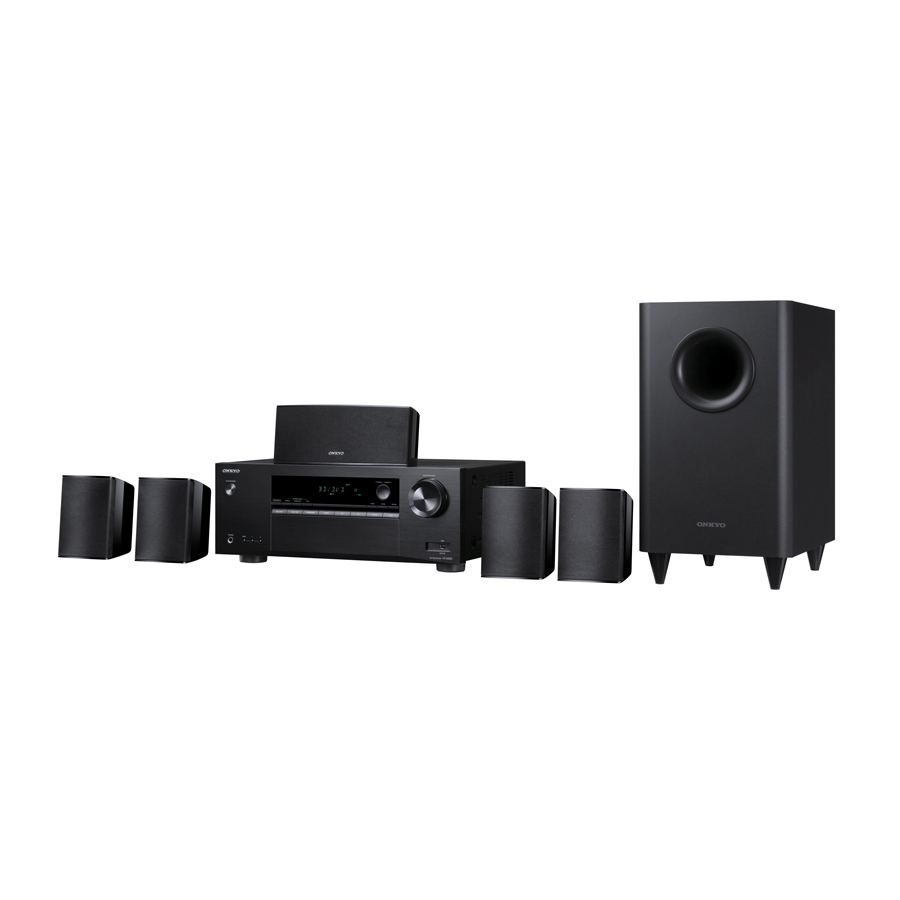

Onkyo

HT-S3800

Click On Image

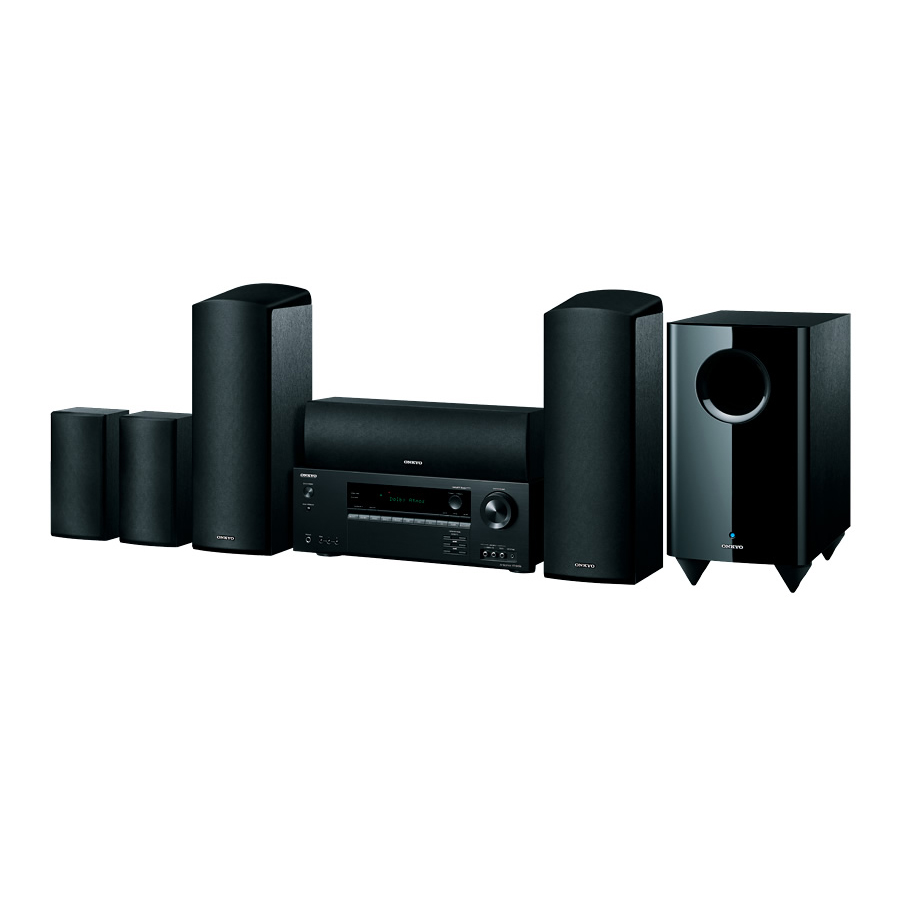

Onkyo
