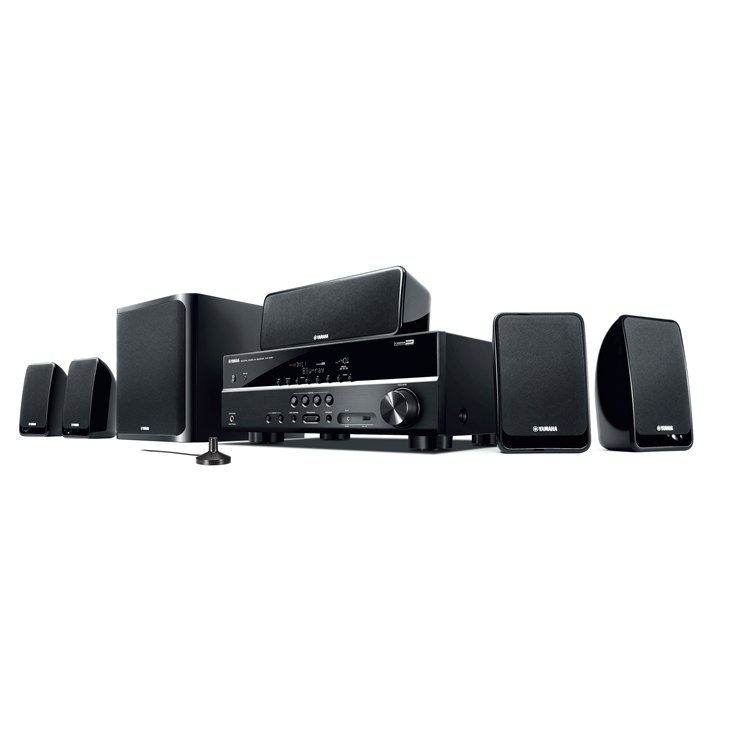

A high value receiver, speaker and subwoofer package that delivers powerful surround sound with dynamic bass thanks to Yamaha’s new Extra Bass.

Description
- A high value receiver, speaker and subwoofer package that delivers powerful surround sound with dynamic bass thanks to Yamaha’s new Extra Bass. Also features 4K Ultra HD pass-through, ECO mode, as well as unique Virtual CINEMA FRONT.

Specification

		HTR-3067
AV Receiver
Amplifier Section	Channel	5.1
	Rated Output Power (1kHz, 1ch driven)	100 W (6ohms, 0.9% THD)
	Rated Output Power (20Hz-20kHz, 2ch driven)	70 W (6ohms, 0.09% THD)
	Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)	135 W (6ohms, 10% THD)
	Dynamic Power per Channel (8/6/4/2 ohms)	- / 110 / 130 / 150 W
Surround Sound Processing	CINEMA DSP	Yes
	DSP Programs	17
	SILENT CINEMA / Virtual CINEMA DSP	Yes (Virtual CINEMA FRONT)
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	DTS-HD Master Audio	Yes
Audio Features	Compressed Music Enhancer	Yes
	YPAO sound optimization	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Initial Volume & Maximum Volume Setting	Yes
	Audio Delay	Yes (0-500 ms)
	192kHz/24-bit DACs for all channels	Yes (Burr-Brown)
Video Features	4K Ultra HD Pass-through	Yes
	HDMI 3D passthrough	Yes
	HDMI Audio Return Channel	Yes
	Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync	Yes

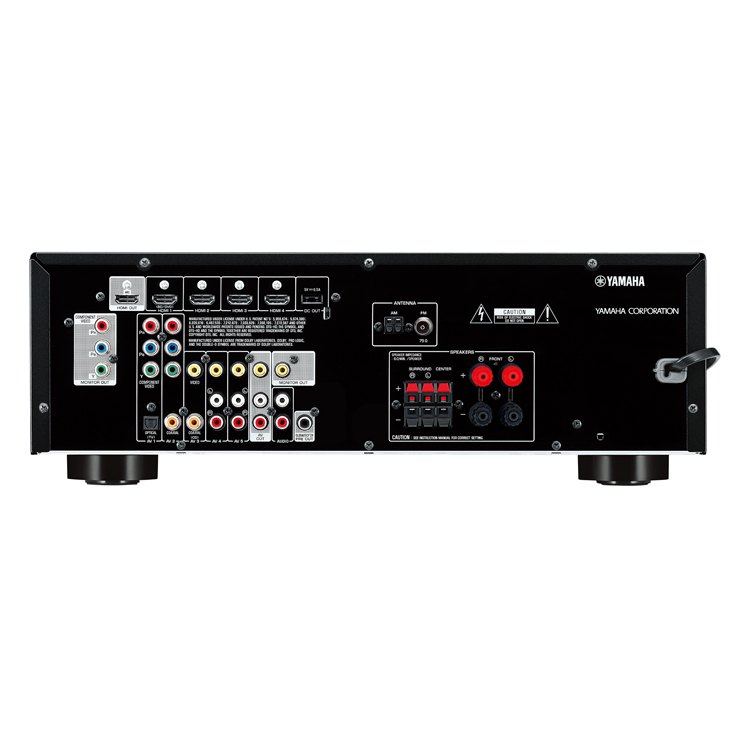

Connectivity	HDMI Input/Output	4 / 1
	HDMI CEC	Yes
	USB Input	iPod / iPhone, USB Memory, Portable Audio Player
	Front AV Input	USB / Mini Jack
	DC Out	Yes
	Digital Audio Input/Output: Optical	1 / 0
	Digital Audio Input/Output: Coaxial	2 / 0
	Analog Audio Input/Output	4 (front 1) / 1
	Component Video Input/Output	2 / 1
	Composite Video Input/Output	3 / 2
	Preout	SW
	Headphone Output	1
Tuner Section	FM/AM Tuner	Yes
User Interface	On-screen display	Yes
	SCENE	SCENE (4 sets)

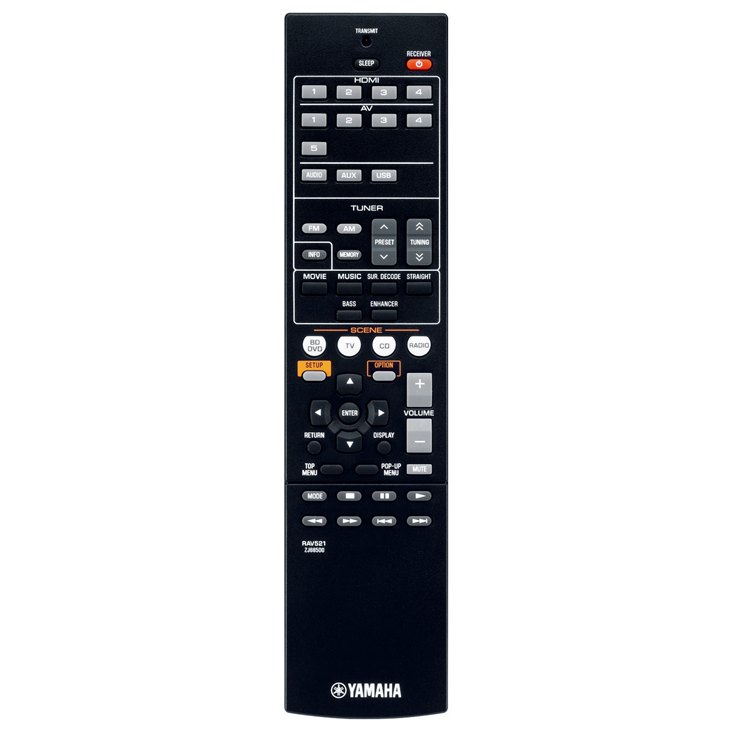

	Remote Control Unit	Yes
General	Standby Power Consumption (IR only)	≤0.3W
	Auto Power Standby	Yes
	ECO mode	Yes
	Dimensions (W x H x D)	435 x 151 x 315 mm; 17-1/8” x 6” x 12-3/8”
	Weight	7.4 kg; 16.3 lbs.

		NS-P20
Package Speaker
Channel		5.1
Speaker System	System Frequency Response	30 Hz–25 kHz
Speaker System	Impedance	6 ohms (without subwoofer)
Front Speaker	Type	Full-range acoustic suspension
	Driver	7cm (2-3/4”) full-range cone
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	83 dB/2.83 V/1 m
	Dimensions (W x H x D)	115 x 176 x 88 mm; 4-1/2” x 6-7/8” x 3-1/2”
	Weight	0.48 kg / unit; 1.06 lbs. / unit
Center Speaker	Type	Full-range acoustic suspension
	Driver	7cm (2-3/4”) full-range cone
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	84 dB/2.83 V/1 m
	Dimensions (W x H x D)	291 x 101 x 103 mm; 11-1/2” x 4” x 4”
	Weight	0.68 kg; 1.5 lbs.
Surround Speaker	Type	Full-range acoustic suspension
	Driver	7cm (2-3/4”) full-range cone
	Nominal Input Power	30 W
	Maximum Input Power	100 W
	Sensitivity	83 dB/2.83 V/1 m
	Dimensions (W x H x D)	115 x 176 x 88 mm; 4-1/2” x 6-7/8” x 3-1/2”
	Weight	0.48 kg / unit; 1.06 lbs. / unit
Subwoofer	Type	Advanced YST with Linear Port
	Driver	16cm (6-1/2”) cone
	Output Power	50 W (5 ohms, 100 Hz, 10% THD)
	Dynamic Power	100 W
	Dimensions (W x H x D)	262 x 264 x 299 mm; 10-3/8” x 10-3/8” x 11-3/4”
	Weight	7 kg; 15.4 lbs.
